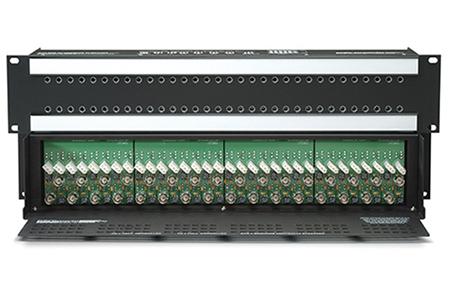

音頻跳線盤在專業音頻系統中是必不可少的,它能將整個信號流程將會變得異常清晰、明確,布線系統乾淨整潔,配線容易。
音頻跳線盤的使用方法
Full Normalled:
連接方式:串行結構
跳線插頭插入上排,可獲得信號輸出,同時音頻跳線盤內部斷開與下方跳線插座的連接。
Half Normalled:
連接方式:並行結構
跳線插頭插入上排(下排)插座,可獲得信號輸出,信號同時與下方(上方)跳線插座相連,信號可由上下插座並行獲得;若在下方插座接入假插頭,可防止信號接入下方插座。
雙環通
連接方式:串行+並行
連接方式與Half Normalled類似,但若要防止信號接入某方插座,需在該方接入假插頭。
* * * * * *
創世服務有限公司是一間提供專業數據中心架設公司,擁有一群專業團隊貼心地關注客戶的要求,並提供優質的服務。
想了解更多關於「音頻跳線盤的使用方法」的內容,請瀏覽創世官網:http://livservices.com.hk
地址: 香港觀塘鴻圖道37-39號鴻泰工業大廈4樓4室
電話:852-31063235
——————
How to use the audio patch panel
Full Normalled:
Connection method: serial structure
The jumper plug is inserted into the upper row to obtain the signal output, and the audio jumper is internally disconnected from the lower jumper socket.
Half Normalled:
Connection method: parallel structure
The jumper plug is inserted into the upper row (lower row) socket to obtain the signal output. The signal is connected to the lower (upper) jumper socket at the same time. The signal can be obtained in parallel by the upper and lower sockets. If the dummy plug is connected to the lower socket, the signal can be prevented from being connected. Below the socket.
Double loop
Connection method: serial + parallel
The connection method is similar to that of Half Normalled, but to prevent the signal from being connected to a socket, you need to access the fake plug on that side.
* * * * * *
